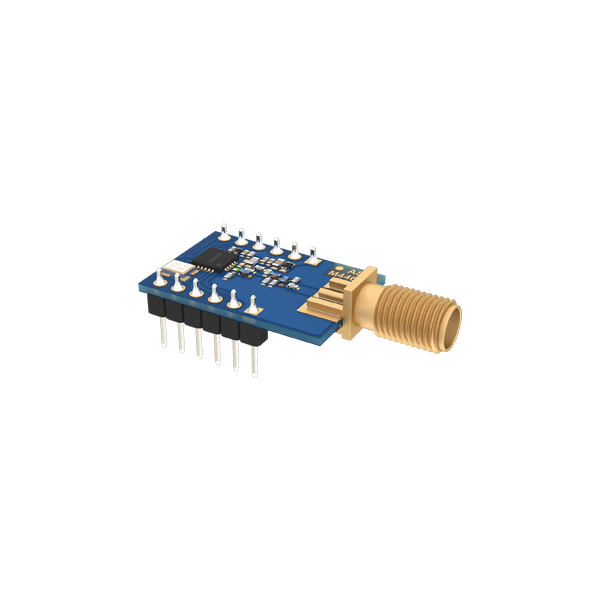

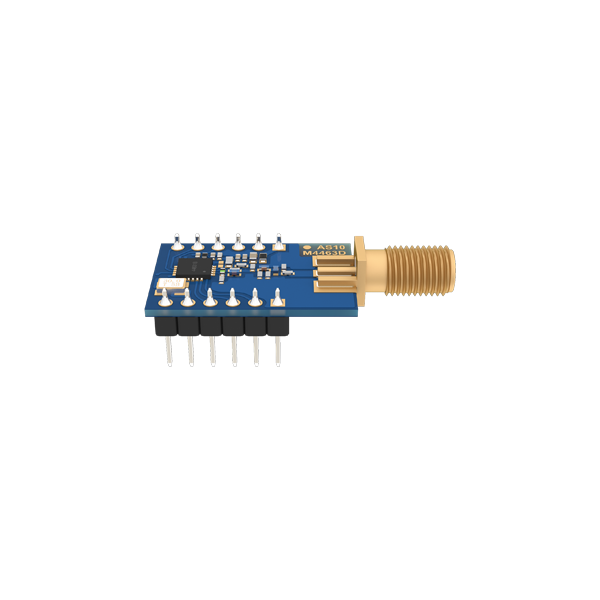

AS10-M4463D-SMA
SI4463-Based 433 MHz, 100 mW RF Transceiver Module with SMA Interface
Key Specifications
RF Chip Solution
Si4463
Modulation
(G)FSK、4(G)FSK、(G)MSK、OOK、ASK
Frequency Range
425~450MHz
Transmit Power
20dBm
Product Details
AS10-M4463D-SMA is an industrial-grade, high-stability RF transceiver module operating at 433 MHz with 100 mW (20 dBm) output power. Developed with the Silicon Labs SI4463 RF chip, it delivers high receiver sensitivity and strong anti-interference performance.
Featuring a standard SMA antenna interface, the module allows flexible connection to high-performance external antennas. A precisely calculated impedance matching network ensures optimal power transfer, resulting in stable output power, excellent spectral characteristics, ultra-low harmonics, and minimal channel crosstalk. Its compact form factor and integration of military-grade components guarantee exceptional reliability for demanding industrial applications requiring robust wireless connectivity and superior wall penetration.
Technical Specifications
| RF Chip Solution | Si4463 |
| Modulation | (G)FSK、4(G)FSK、(G)MSK、OOK、ASK |
| Frequency Range | 425~450MHz |
| Transmit Power | 20dBm |
| Reference Distance | 2km |
| Key Features | Multiple modulation schemes, long communication range, SMA connector. |
