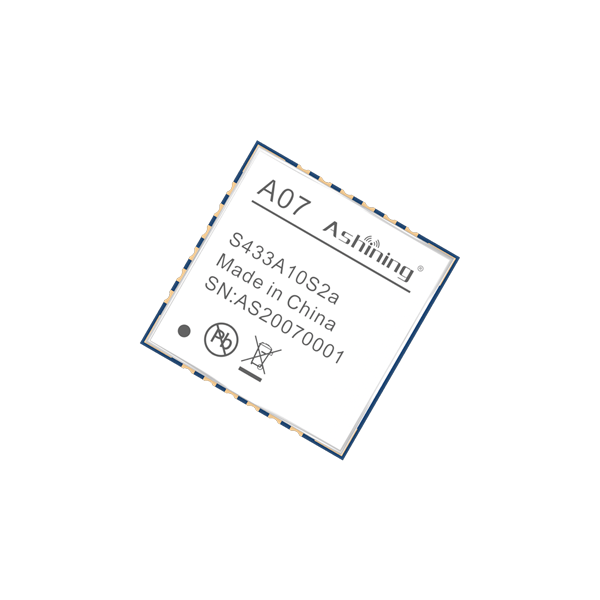

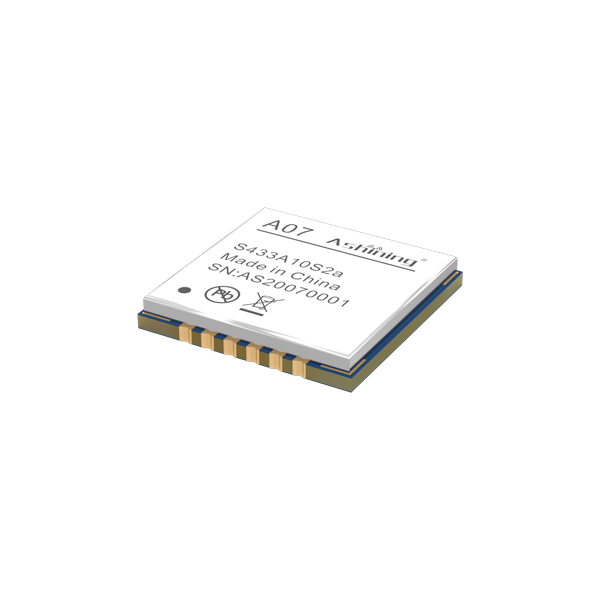

A07-S433A10S2a
Shielded CC1101-Based 433 MHz, 10 mW RF Transceiver Module with Castellated Half-Hole Interface
Key Specifications
RF Chip Solution
CC1101
Modulation
2-FSK、GFSK、MSK
Frequency Range
387-464MHz
Transmit Power
10dBm
Product Details
A07-S433A10S2a is an industrial-grade, high-stability RF transceiver module operating at 433 MHz with 10 mW (10 dBm) output power. Developed with the Texas Instruments CC1101 RF chip, it integrates FEC (Forward Error Correction) and interleaving encoding to deliver robust anti-interference performance, excellent diffraction characteristics, and superior penetration capability.
Housed in a metal-shielded enclosure, the module ensures stable output power and optimal RF characteristics, featuring ultra-low harmonics and minimal channel crosstalk. Its castellated half-hole design enables compact surface mounting, while selected military-grade components guarantee exceptional reliability for demanding industrial applications.
Technical Specifications
| RF Chip Solution | CC1101 |
| Modulation | 2-FSK、GFSK、MSK |
| Frequency Range | 387-464MHz |
| Transmit Power | 10dBm |
| Reference Distance | 1km |
| Key Features | Ultra-compact size, stable and reliable. |
