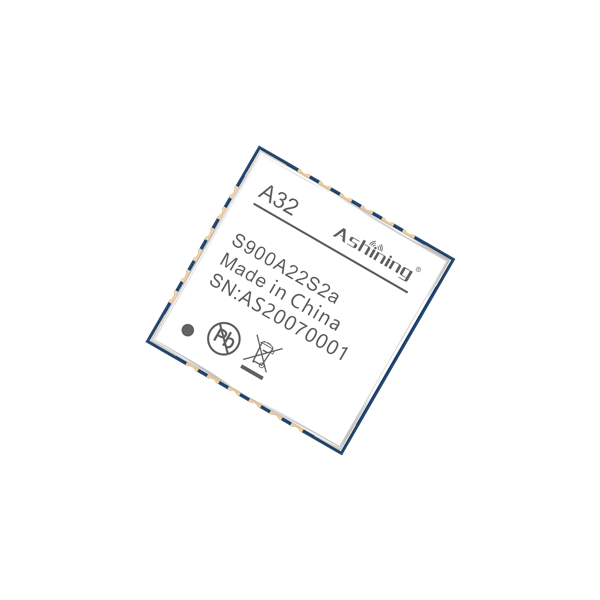

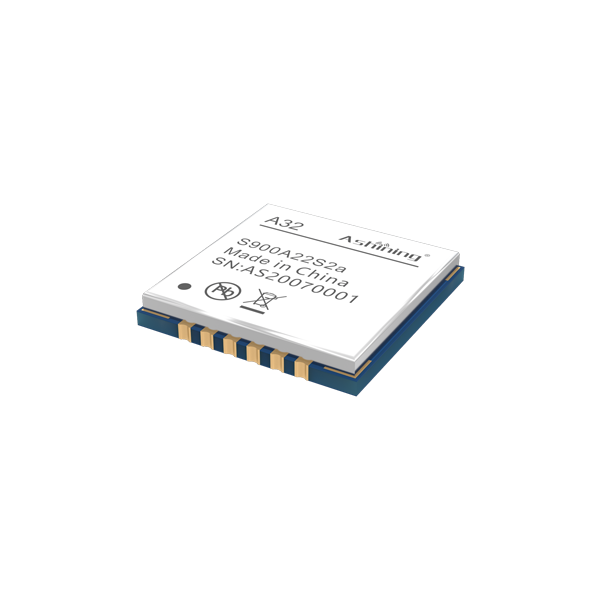

A32-S900A22S2a
Shielded SX1262-Based 868/915 MHz, 158 mW LoRa Spread-Spectrum RF Transceiver Module with Castellated Half-Hole Antenna Interface
Key Specifications
RF Chip Solution
SX1262
Modulation
GFSK、FSK、MSK、GMSK、LORA、OOK
Frequency Range
850-931MHz
Transmit Power
22dBm
Product Details
A32-S900A22S2a is an industrial-grade, high-stability RF transceiver module optimized for 868/915 MHz (EU/US bands) with 158 mW (22 dBm) output power. Built on the Semtech SX1262 chipset, it operates across the 850–931 MHz ISM band and is housed in a metal-shielded enclosure for superior electromagnetic interference (EMI) protection.
Delivering stable output power with excellent spectral purity, the module features ultra-low harmonics and minimal channel crosstalk. Its compact form factor and integration of military-grade components ensure exceptional reliability for demanding industrial IoT applications requiring robust, long-range wireless connectivity.
Technical Specifications
| RF Chip Solution | SX1262 |
| Modulation | GFSK、FSK、MSK、GMSK、LORA、OOK |
| Frequency Range | 850-931MHz |
| Transmit Power | 22dBm |
| Reference Distance | 5km |
| Key Features | Ultra-compact size, wide frequency band, multi-channel. |
