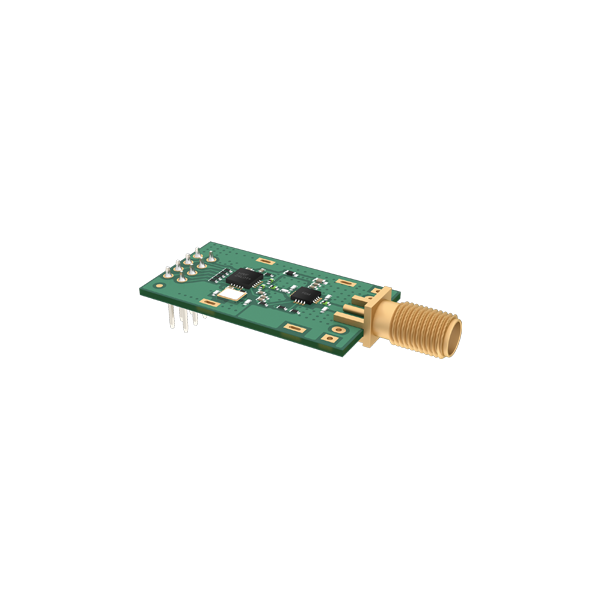

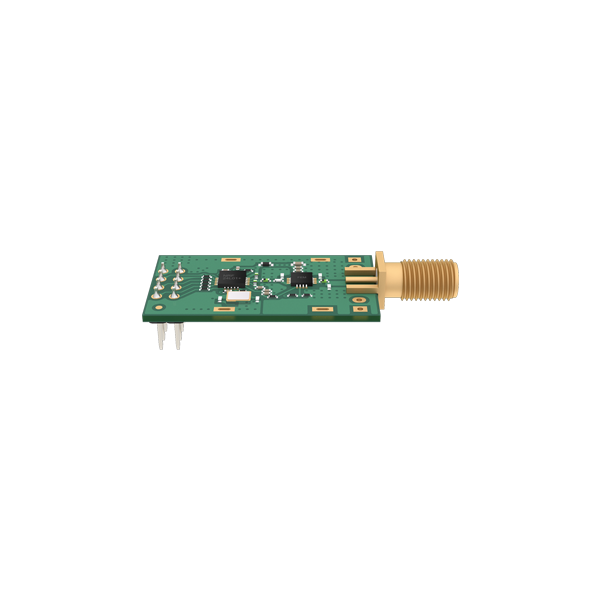

AS01-ML01DP5
nRF24L01P-Based, Shielded 2.4 GHz, 100 mW RF Transceiver Module with SMA Interface, Integrated PA & LNA
Key Specifications
RF Chip Solution
nRF24L01P
Modulation
GFSK
Frequency Range
2.4-2.525GHz
Transmit Power
20dBm
Product Details
AS01-ML01DP5 is an industrial-grade, high-stability RF transceiver module operating in the 2.4 GHz to 2.525 GHz ISM band with 100 mW (20 dBm) output power. Built on the Nordic nRF24L01P chipset and integrated with a Power Amplifier (PA) and Low Noise Amplifier (LNA), it delivers a 10 dB improvement in receiver sensitivity.
Housed in a metal-shielded enclosure for superior noise immunity, the module ensures robust performance in electrically harsh environments. It delivers stable output power with excellent spectral purity, featuring ultra-low harmonics and minimal channel crosstalk. Its compact form factor and use of military-grade components guarantee exceptional reliability for demanding industrial applications.
Technical Specifications
| RF Chip Solution | nRF24L01P |
| Modulation | GFSK |
| Frequency Range | 2.4-2.525GHz |
| Transmit Power | 20dBm |
| Reference Distance | 2km |
| Key Features | High-performance PA+LNA, long-range, metal shielding. |
