AS01-ML01IPX
nRF24L01P-Based 2.4 GHz, 1 mW RF Transceiver Module with IPEX Connector
Key Specifications
RF Chip Solution
nRF24L01P
Modulation
GFSK
Frequency Range
2.4-2.525GHz
Transmit Power
0dBm
Product Details

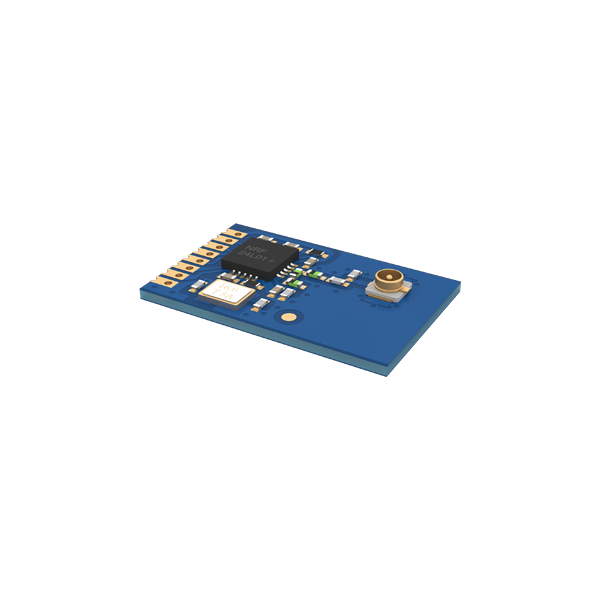

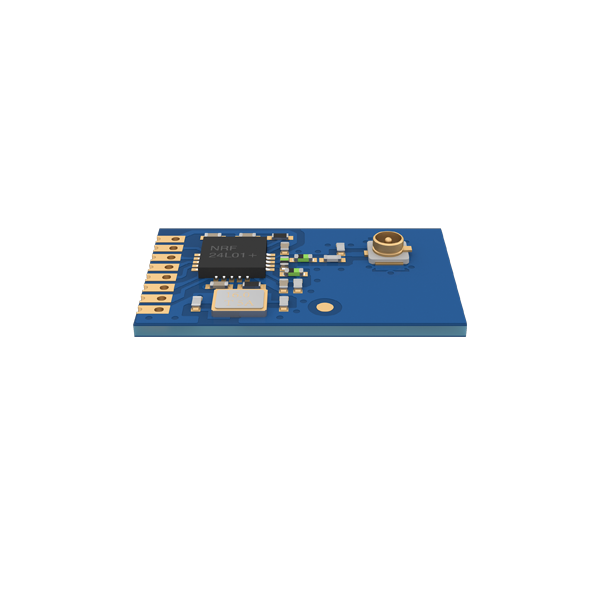

AS01-ML01IPX is an industrial-grade, high-stability RF transceiver module operating in the 2.4 GHz to 2.525 GHz ISM band with 1 mW (0 dBm) output power. Built on the Nordic nRF24L01P chipset, it features a standard IPEX (U.FL) connector for external antenna integration, enabling seamless embedding into compact product designs.
The module delivers stable output power with excellent spectral characteristics, featuring ultra-low harmonics and minimal channel crosstalk. Its ultra-compact form factor and integration of military-grade components ensure exceptional reliability for space-constrained industrial applications requiring robust wireless connectivity.
Technical Specifications
| RF Chip Solution | nRF24L01P |
| Modulation | GFSK |
| Frequency Range | 2.4-2.525GHz |
| Transmit Power | 0dBm |
| Reference Distance | 0.12km |
| Key Features | Compact size, low packet loss rate, stable performance. |
