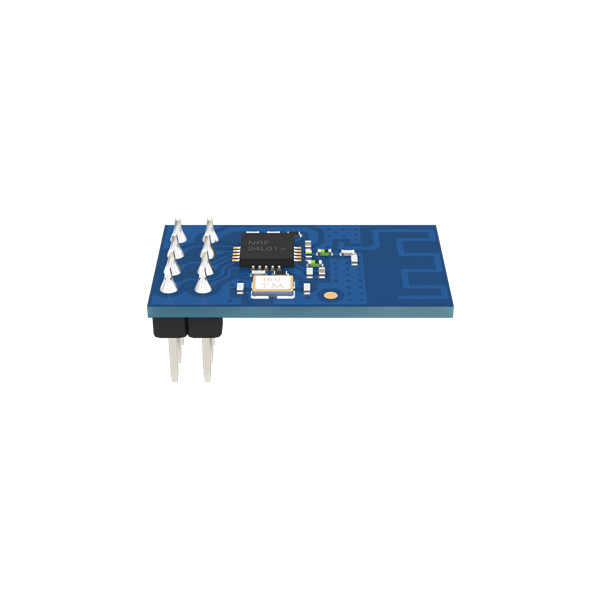

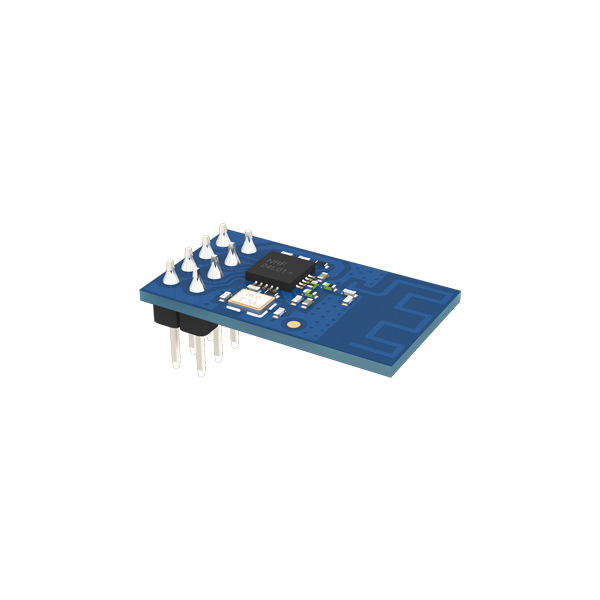

AS01-ML01D
Shielded nRF24L01P-Based 2.4 GHz, 1 mW RF Transceiver Module with Integrated PCB Antenna
Key Specifications
RF Chip Solution
nRF24L01P
Modulation
GFSK
Frequency Range
2.4-2.525GHz
Transmit Power
0dBm
Product Details
AS01-ML01D is an industrial-grade, high-stability RF transceiver module operating in the 2.4 GHz to 2.525 GHz ISM band. Built on the Nordic nRF24L01P chipset, it integrates a high-performance PCB antenna with precision impedance matching for optimal signal integrity.
Delivering reliable output power with excellent spectral characteristics, the module features low harmonics and minimal channel crosstalk. Its ultra-compact, shielded design ensures robust performance in noisy RF environments, while selected components meeting military-grade standards guarantee exceptional reliability for demanding industrial applications.
Technical Specifications
| RF Chip Solution | nRF24L01P |
| Modulation | GFSK |
| Frequency Range | 2.4-2.525GHz |
| Transmit Power | 0dBm |
| Reference Distance | 0.12km |
| Key Features | Compact size, easy integration, adjustable power. |
