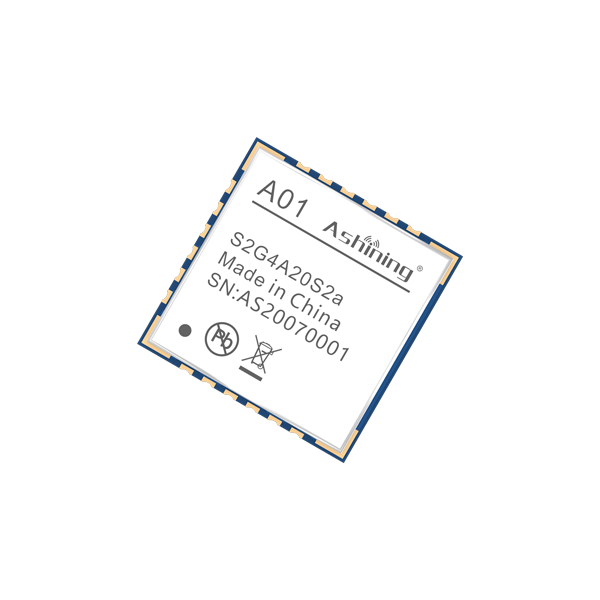

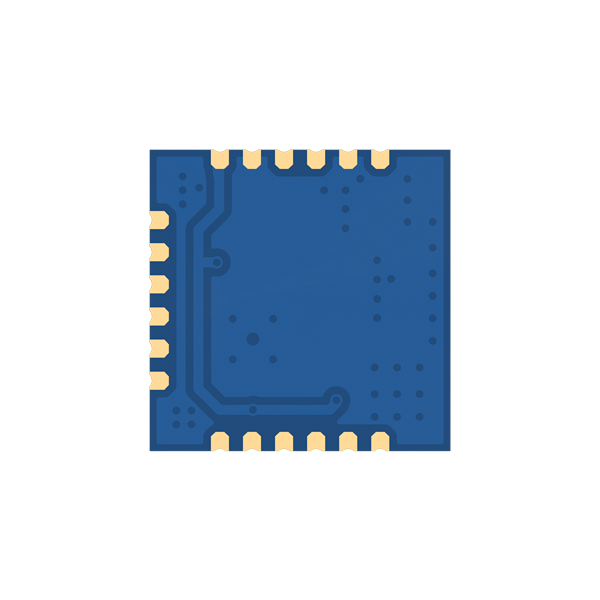

A01-S2G4A20S2a
NRF24L01P-Based 2.4 GHz, 100 mW RF Transceiver Module with Castellated Half-Hole Interface
Key Specifications
RF Chip Solution
nRF24L01P
Modulation
GFSK
Frequency Range
2.4-2.525GHz
Transmit Power
20dBm
Product Details
A01-S2G4A20S2a is an industrial-grade, high-stability RF transceiver module operating in the 2.4 GHz to 2.525 GHz ISM band with 100 mW (20 dBm) output power. Developed with the Nordic NRF24L01P RF chip and integrated PA (Power Amplifier), it is designed for seamless embedding via its castellated half-hole (stamp hole) interface.
The module delivers stable output power with excellent RF characteristics, featuring ultra-low harmonics and minimal channel crosstalk. Its ultra-compact, surface-mountable design and integration of military-grade components ensure exceptional reliability for space-constrained industrial applications requiring robust wireless connectivity.
Technical Specifications
| RF Chip Solution | nRF24L01P |
| Modulation | GFSK |
| Frequency Range | 2.4-2.525GHz |
| Transmit Power | 20dBm |
| Reference Distance | 2km |
| Key Features | Ultra-compact size, high-performance PA+LNA, metal shielding. |
