A01-S2G4A00S1a

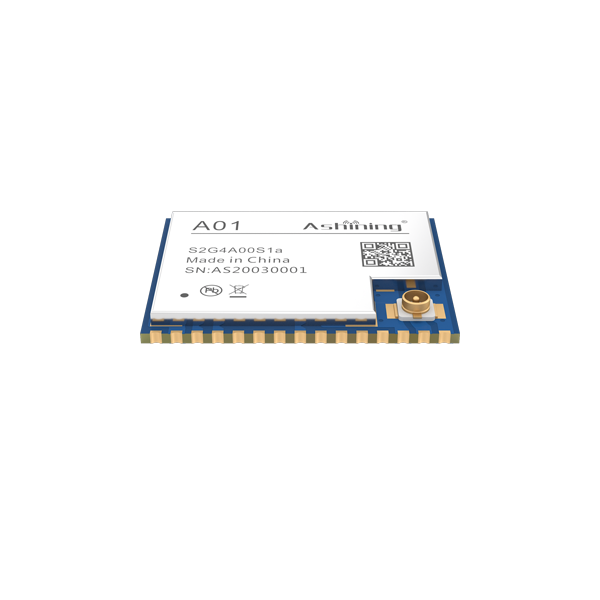

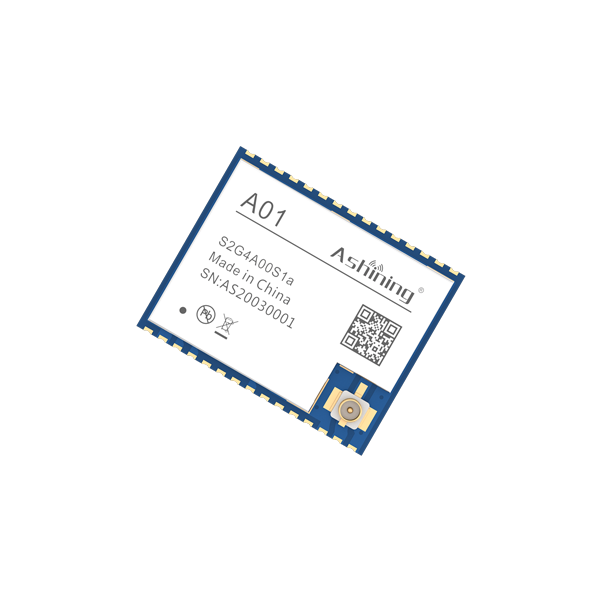

nRF24L01P-Based, 2.4 GHz, 1 mW RF Transceiver Module with Castellated Half-Holes / IPEX Antenna Interface
Key Specifications
RF Chip Solution
nRF24L01P
Modulation
GFSK
Frequency Range
2.4-2.525GHz
Transmit Power
0dBm
Product Details
A01-S2G4A00S1a is an integrated RF transceiver module built on the Nordic nRF24L01P chipset, operating within the 2.4 GHz to 2.525 GHz ISM band. Designed for seamless integration, it features both castellated half-holes and an IPEX (U.FL) connector with precision impedance matching.
The module delivers stable output power with excellent spectral characteristics, featuring low harmonics and minimal channel crosstalk. Its ultra-compact form factor and broad compatibility simplify integration into space-constrained designs. Selected components meet military-grade standards, ensuring high reliability for demanding industrial applications.
Technical Specifications
| RF Chip Solution | nRF24L01P |
| Modulation | GFSK |
| Frequency Range | 2.4-2.525GHz |
| Transmit Power | 0dBm |
| Reference Distance | 0.12km |
| Key Features | Compact size, easy integration, metal shielding. |
