AS32-D33 (433M)
High-Stability 15km Long-Range LoRa UART Module 433 MHz | 2W | Point-to-Point Transmission | Data Encryption
Key Specifications
RF Chip Solution
SX1278
Default Frequency
433MHz
Reference Distance
3km
Air Data Rate
0.3-19.2kbps
Product Details

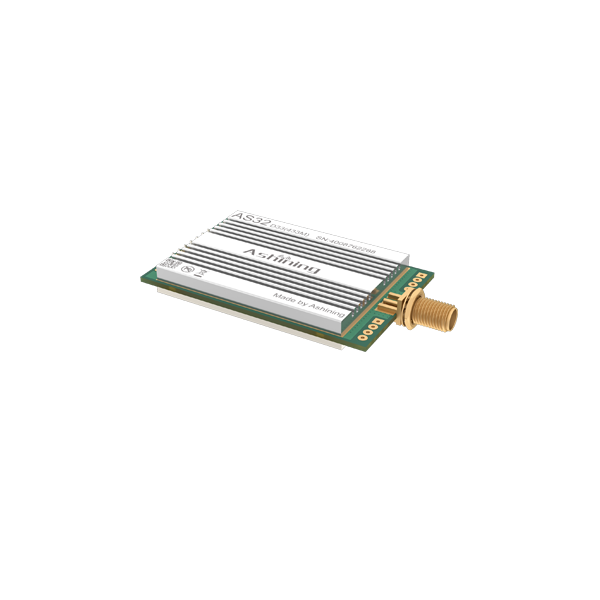

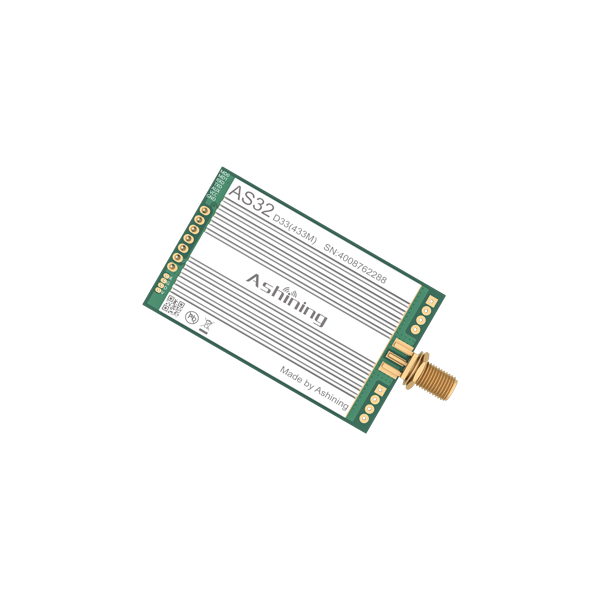

AS32-D33(433M) is a high-stability industrial LoRa data module based on Semtech SX1278 chip. Working at 433 MHz with 2W (33 dBm) transmit power and TTL output, it realizes stable 15km line-of-sight long-distance transmission via LoRa spread spectrum and boasts outstanding anti-interference capability.
It supports four switchable working modes and ultra-low power mode, ideal for battery-powered long-range industrial monitoring.
Technical Specifications
| RF Chip Solution | SX1278 |
| Default Frequency | 433MHz |
| Reference Distance | 3km |
| Air Data Rate | 0.3-19.2kbps |
| Package Type | Pin-header |
| Antenna Type | SMA |
