AS32-TTL-1W
SX1278 Long-Range LoRa UART Module. 433 MHz, 1W transmit power, point-to-point transmission & data encryption
Key Specifications
RF Chip Solution
SX1278
Default Frequency
433MHz
Reference Distance
8km
Air Data Rate
0.3-19.2kbps
Product Details

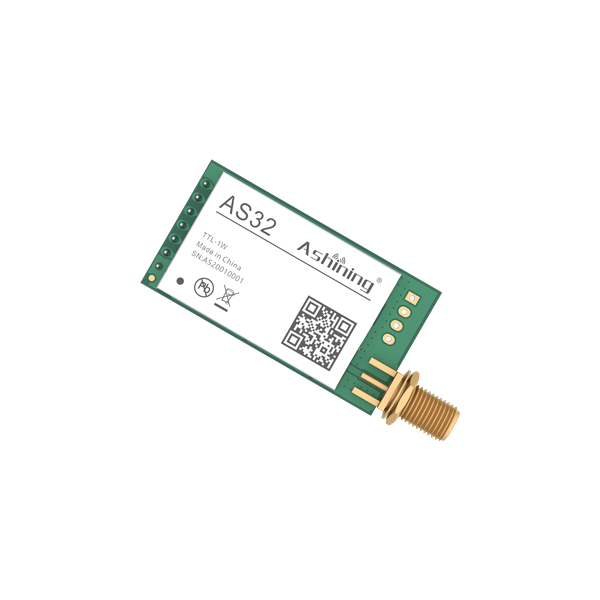

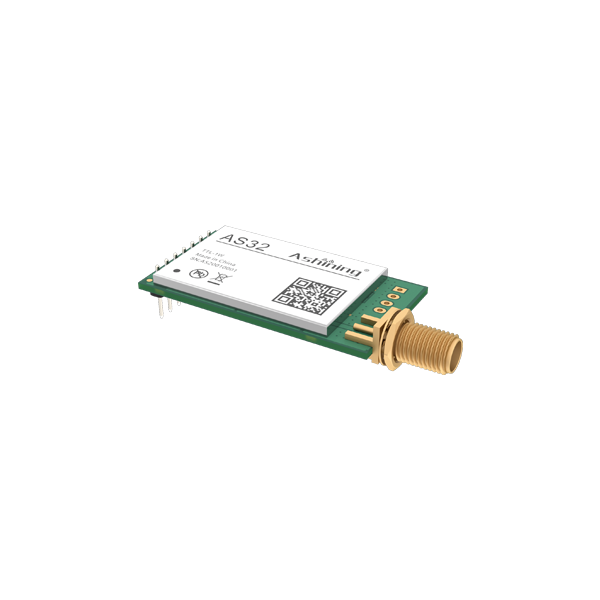

AS32-TTL-1W is a long-distance industrial LoRa data module built on Semtech SX1278 chip, working at 433 MHz with 1W (30 dBm) transmit power.

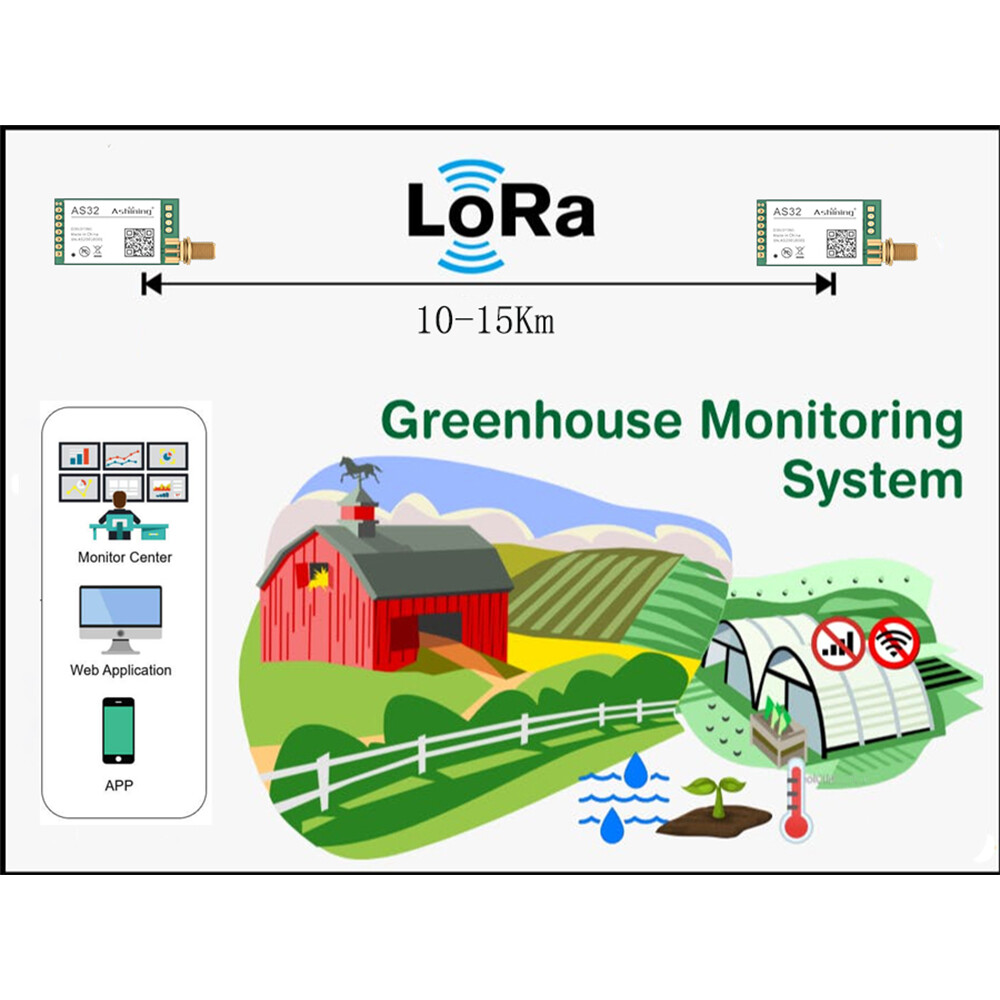

Benefiting from high receiving sensitivity of LoRa spread spectrum and TTL output, it features low receiving current and strong anti-interference. Four switchable working modes and ultra-low power design adapt to battery-powered long-range industrial transmission scenarios.
Technical Specifications
| RF Chip Solution | SX1278 |
| Default Frequency | 433MHz |
| Reference Distance | 8km |
| Air Data Rate | 0.3-19.2kbps |
| Package Type | Pin-header |
| Antenna Type | SMA |
