AS32-TTL-100
Classic Stable SX1278 LoRa UART Module. 433MHz, 100mW, point-to-point transmission & data encryption.
Key Specifications
RF Chip Solution
SX1278
Default Frequency
433MHz
Reference Distance
3km
Air Data Rate
0.3-19.2kbps
Product Details

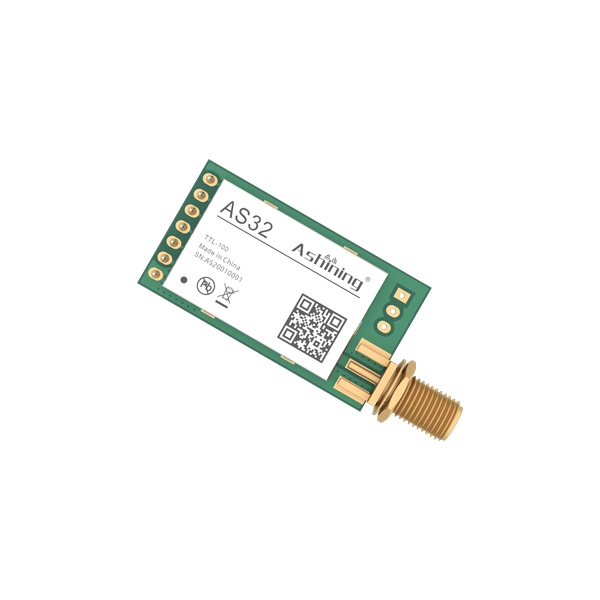

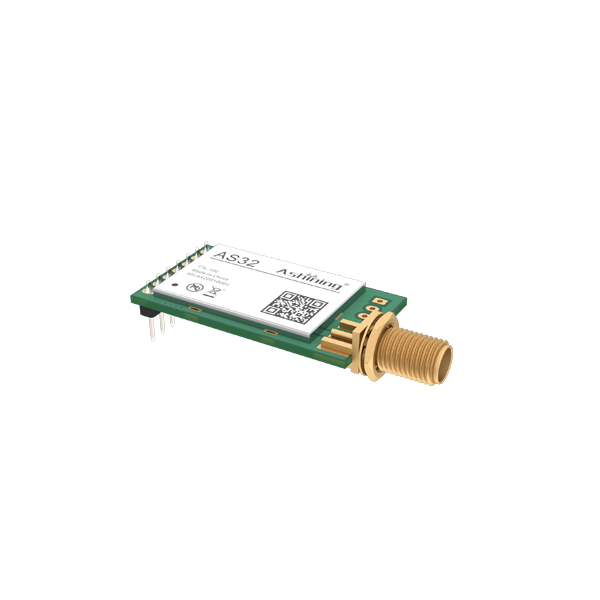

AS32-TTL-100 is a classic high-stability industrial LoRa module based on Semtech SX1278 chip, 433MHz with 100mW (20dBm) transmit power and TTL level output.
It features superior receiving sensitivity and strong anti-interference via LoRa modulation. Four switchable working modes and ultra-low power design fit battery-powered industrial scenarios.
Technical Specifications
| RF Chip Solution | SX1278 |
| Default Frequency | 433MHz |
| Reference Distance | 3km |
| Air Data Rate | 0.3-19.2kbps |
| Package Type | Pin-header |
| Antenna Type | SMA |
