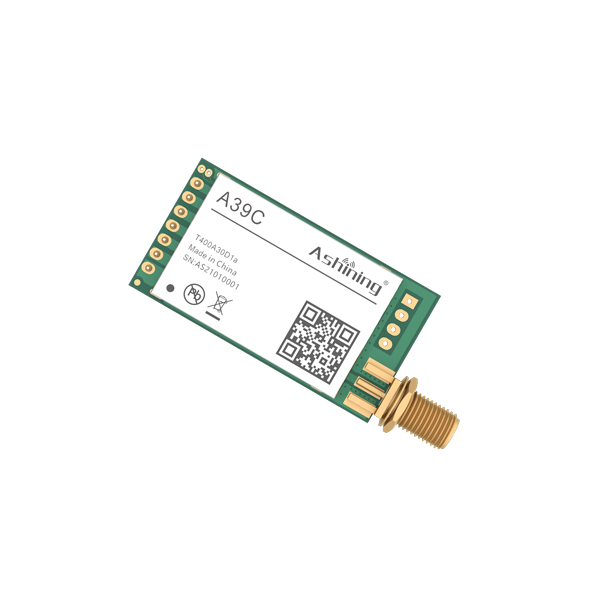

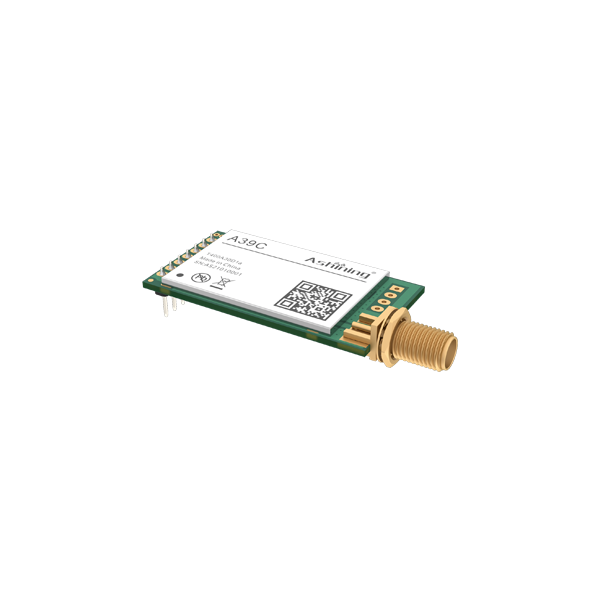

A39C-T400A30D1a
High Cost-Performance LoRa UART Module with LLCC68 Chip 410–490 MHz frequency band, 1W transmit power, LoRa spread spectrum; supports point-to-point communication and AES encryption, balancing premium RF performance and low procurement cost.
Key Specifications
RF Chip Solution
LoRa Spread Spectrum Chip
Default Frequency
433MHz
Reference Distance
10km
Air Data Rate
1.2-62.5kbps
Product Details
A39C-T400A30D1a is a cost-effective industrial LoRa UART module built on LLCC68 chip for stable 10km long-distance LOS transmission.
Working at 410–490 MHz with 1W (30 dBm) transmit power, it adopts LoRa spread spectrum. Multiple communication modes, AES encryption and ultra-low power design are integrated, featuring full functions and high stability for various industrial long-range data transmission.
Technical Specifications
| RF Chip Solution | LoRa Spread Spectrum Chip |
| Default Frequency | 433MHz |
| Reference Distance | 10km |
| Air Data Rate | 1.2-62.5kbps |
| Package Type | Pin-header |
| Antenna Type | SMA |
