A810-L900M30
FCC Certified Long-Range LoRa Module: Dual RS232/RS485 industrial interfaces, maximum 10km ultra-long transmission range, 850–931MHz LoRa spread spectrum. Supports star networking, auto relay transmission, AES data encryption and ModBus protocol, compliant with North American RF regulatory requirements.
Key Specifications
Data Interface
RS232/RS485
Frequency Range
850-931MHz
Number of Channels
82
Transmit Power
30dBm
Product Details

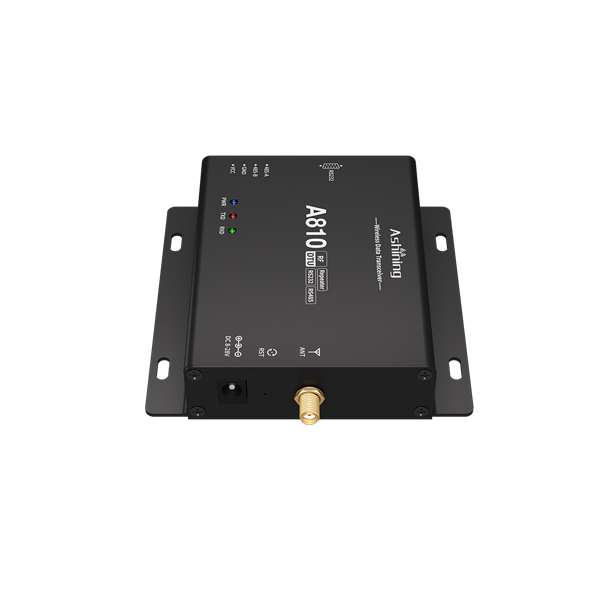

The A810-L900M30 is an FCC-certified, long-distance industrial wireless data radio with excellent operational stability. Covering the 850–931 MHz frequency band and equipped with a high transmit power of 1W (30 dBm), it leverages advanced LoRa spread-spectrum modulation to realize ultra-long-distance wireless signal coverage and meets North American RF regulatory standards via official FCC certification.
This radio integrates dual industrial interfaces RS232 and RS485 to accommodate diverse field terminal access. Built-in high-efficiency cyclic error correction algorithm delivers high coding efficiency and robust error correction performance, effectively boosting anti-interference capability and sustaining steady long-term operation in complex industrial environments.
Technical Specifications
| Data Interface | RS232/RS485 |
| Frequency Range | 850-931MHz |
| Number of Channels | 82 |
| Transmit Power | 30dBm |
| Reference Distance | 10km |
| Air Data Rate | 1.2-62.5kbps |
| Key Features | LoRa, 1W TX Power, Wide Frequency Band, Long Range. |
