A810-L400M30
RS232/RS485 interface, 10 km transmission range, 410–490 MHz LoRa spread-spectrum, star networking, auto-relay, AES encryption, and ModBus protocol support.
Key Specifications
Data Interface
RS232/RS485
Frequency Range
410-490MHz
Number of Channels
81
Transmit Power
30dBm
Product Details

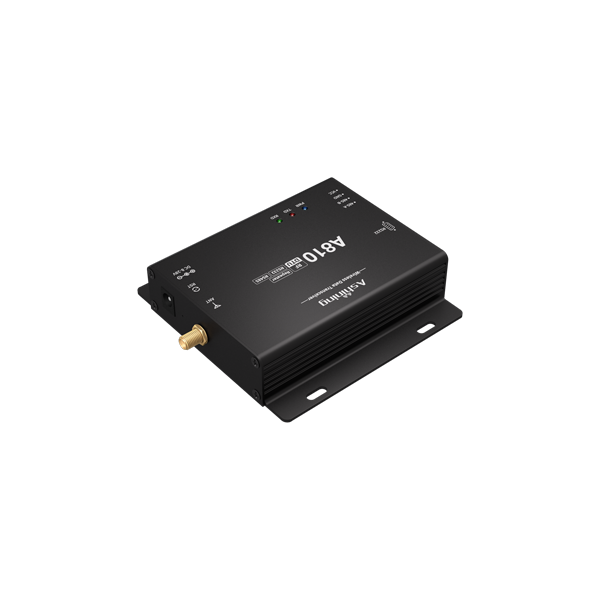

A810-L400M30 is an industrial-grade, high-stability wireless data radio operating in the 410–490 MHz band with 1W (30 dBm) output power. Employing LoRa spread-spectrum modulation, it features both RS232 and RS485 interfaces. The integration of an efficient cyclic error-correction algorithm ensures high coding efficiency and superior error-correction capabilities, significantly enhancing the radio’s anti-interference performance and overall operational stability.
Technical Specifications
| Data Interface | RS232/RS485 |
| Frequency Range | 410-490MHz |
| Number of Channels | 81 |
| Transmit Power | 30dBm |
| Reference Distance | 10km |
| Air Data Rate | 1.2-62.5kbps |
| Key Features | LoRa, 1W TX Power, Wide Frequency Band, Long Range. |
