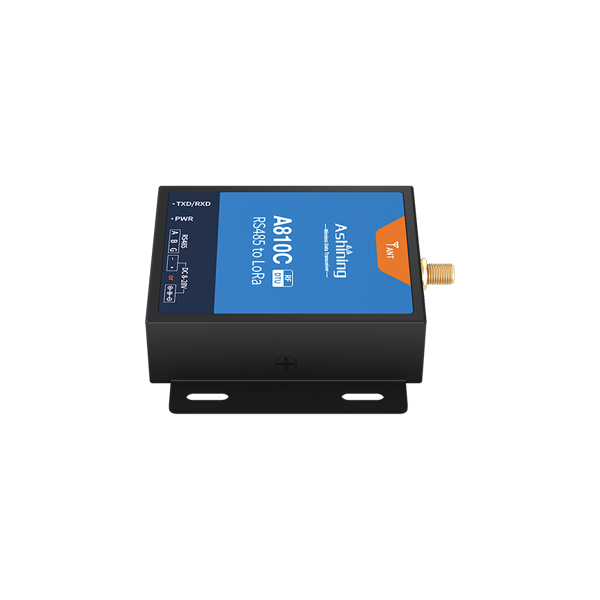

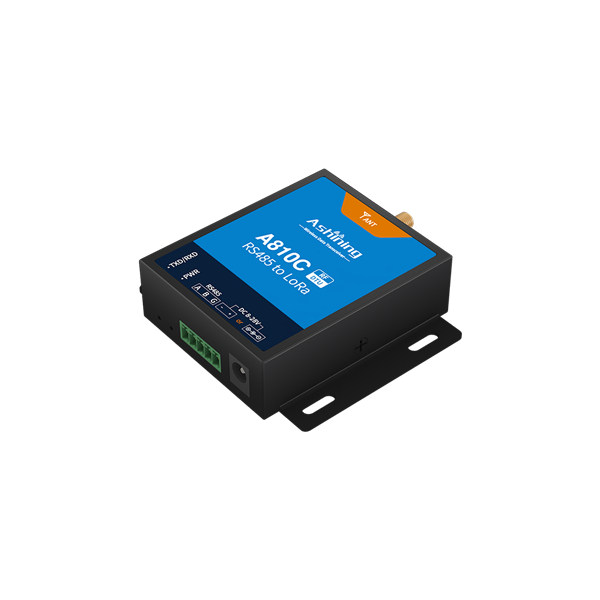

A810C-L400M22
High cost-performance LoRa wireless module: RS485 electrical interface, max. 5km communication distance, 410–525MHz LoRa spread spectrum, star networking, auto relay transmission, AES data encryption, native ModBus protocol compatibility.
Key Specifications
Data Interface
RS485
Frequency Range
410-525MHz
Number of Channels
116
Transmit Power
22dBm
Product Details
The A810C-L400M22 is a cost-effective industrial wireless data transceiver delivering exceptional stability. It covers the 410–525 MHz frequency band with a maximum transmit power of 158 mW (22 dBm). Equipped with standard industrial RS485 interface, the module adopts cutting-edge LoRa spread-spectrum modulation technology, together with multiple built-in real-time operating monitoring circuits. The combined design greatly strengthens anti-interference capability and delivers consistent, reliable field performance, presenting outstanding overall technical specifications at a highly competitive price point.
Technical Specifications
| Data Interface | RS485 |
| Frequency Range | 410-525MHz |
| Number of Channels | 116 |
| Transmit Power | 22dBm |
| Reference Distance | 5km |
| Air Data Rate | 1.2-62.5kbps |
| Key Features | LoRa Spread Spectrum, Cost-Effective, Wide Frequency Band. |
