A100-L400M30
Standard RS485 interface, DIN rail mounting design, 10 km maximum communication range, 410–490 MHz LoRa spread spectrum star topology networking, automatic relay function, AES hardware encryption, built-in ModBus protocol support
Key Specifications
Data Interface
RS485
Frequency Range
410-490MHz
Number of Channels
81
Transmit Power
30dBm
Product Details

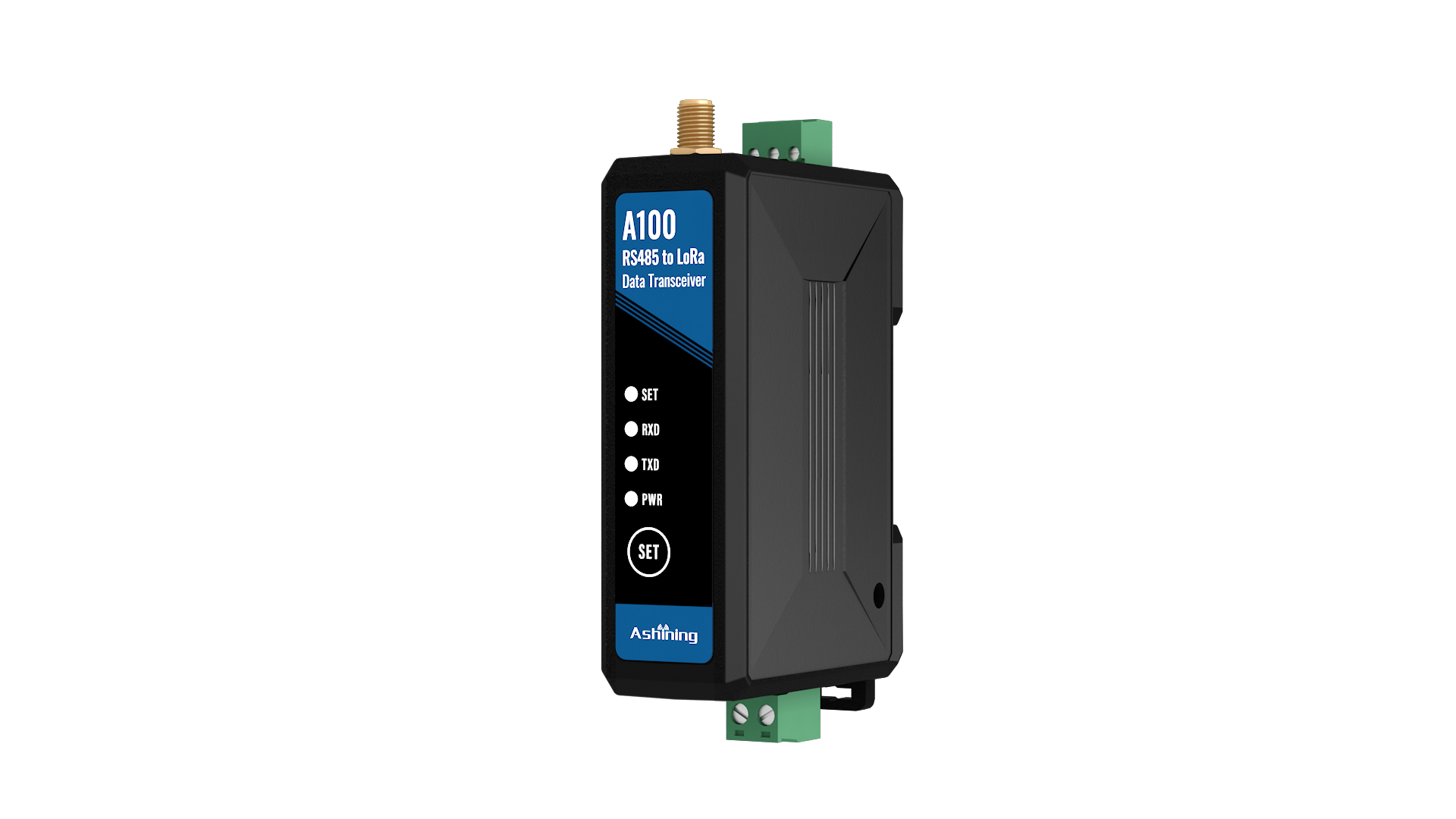

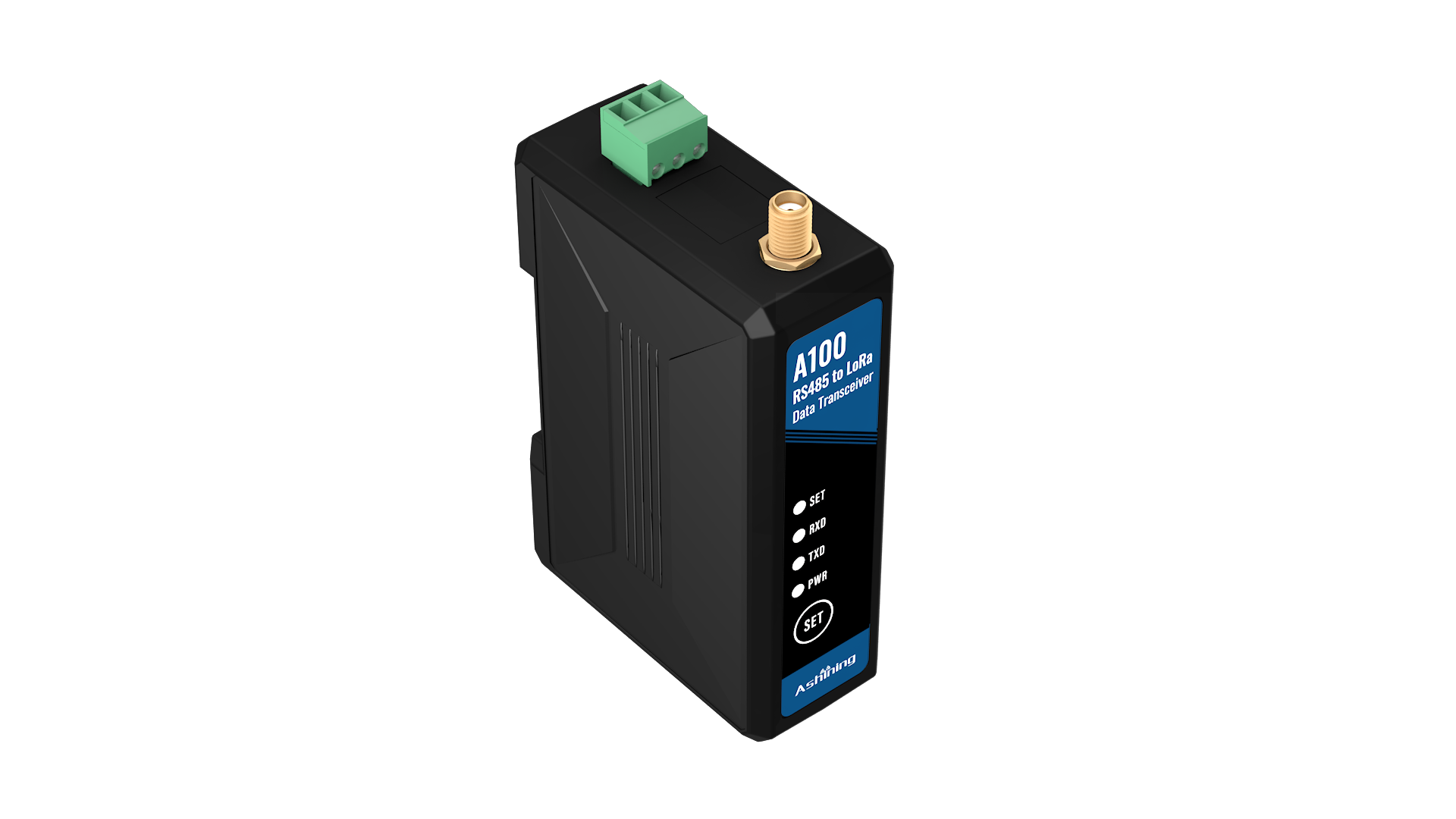

A100-L400M30 is an industrial-grade LoRa data transceiver module working on the 410–490 MHz frequency band with 1 W transmit power. It supports DIN rail mounting, adopts LoRa spread spectrum technology and is equipped with RS485 interface. The built-in high-efficiency cyclic error correction algorithm delivers powerful error correction and superior anti-interference performance to ensure reliable industrial operation.
Technical Specifications
| Data Interface | RS485 |
| Frequency Range | 410-490MHz |
| Number of Channels | 81 |
| Transmit Power | 30dBm |
| Reference Distance | 10km |
| 1.2-62.5kbps | 1.2-62.5kbps |
| Key Features | LoRa Spread Spectrum, High Power, DIN-Rail Mounting for Easy Installation. |
